Small Bicycle Frame Builders  |  SKU: 9789
Sold out

1992 Spectrum Cycles / Tom Kellogg Road Bike: 64cm x 59cm - NEW Joe Bell Resto & NOS Parts - PURPLE & White - Record / DA 10sp - Henry James Dogbone

$2,999.99
Shipping calculated at checkout.

Item Condition

I grade products as honestly as possible and depict blemishes in both description and photos—please study them carefully. I tend to be overcritical and customers report items to be in better shape than expected often. From best condition to worst condition, my grading scale is as follows. Mint / near mint+ / near mint / excellent+ / excellent / great / very good / average / fair.

Shipping & Returns

Most orders ship within 1–5 business days via USPS Priority Mail or UPS. Free shipping on qualifying orders. Refunds allowed within 30 days of receipt. 5% restocking fee applies for returns not due to Swoon Cycles' error, and for all cancelled orders to cover my card processing fee. Contact us at Zella@BikeReCyclery.com before returning. Read full return policies HERE

Swoon Cycles is an eclectic ecommerce shop run by one eclectic woman. Formerly known as Bike ReCyclery.

Stay wild and pedal on!

~Zella

Description
** Portland local pickup special is $2400**

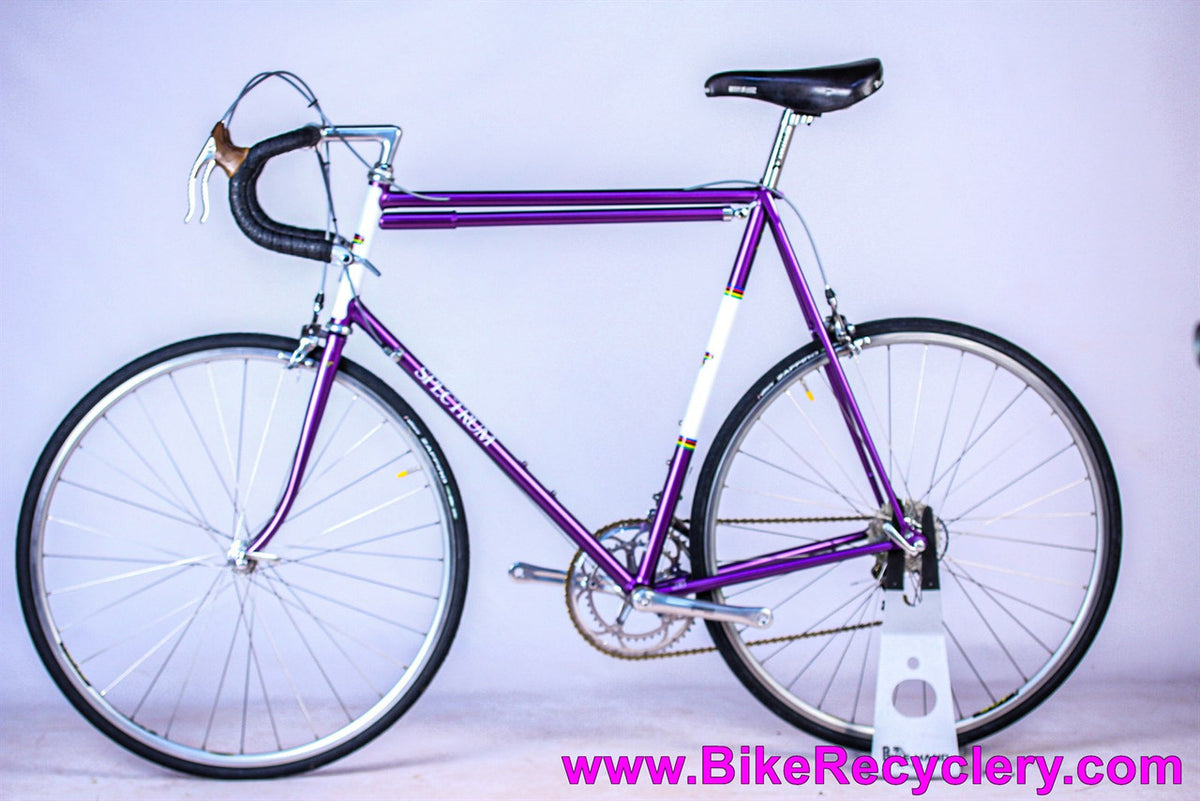

Feast your eyes on this classically designed, custom built Ishiwata / Columbus SL out of Tom Kellogg's Spectrum Cycles workshop in Pennsylvania. This bicycle is unreasonably pretty.  It was given a $1300 paint job by Joe Bell just four weeks ago and not ridden since.  The previous owner is an avid lifelong cyclist, and he built this up with a frankenbike-style collection of parts chosen with a performance first and "correctness" 2nd attitude.  It's modern meets vintage styling is well suited to this frame that is styled as if it could have been built in the 1970's but wasn't even conceived until 1991.  It was originally intended to be his dream bike fulfilled, but he found his dream gravel bike and sold this Spectrum and some other bicycle gold to me to fund it.

This frame currently has 700x25's with lots of room.  The front will easily fit a 28 or maybe even a 30mm.  The rear should fit most 28s fine, but the tallest of tires might come pretty close to the brake bridge.  It features internal cable routing, 130mm rear spacing, finely filed crafted from scrach lugs, and a cast fork crown that at first glance resembles a segmented fork.

Kellogg is one of the most important framebuilders in USA history, and has been involved in the creation of top shelf boundary pushing bicycles since 1976 when he built his first frame out of a barn.  He has designed, fitted, and painted frames under his own name, the Ross Bicycles "Signature" line, and as of 1988, Spectrum Cycles.  He helped form Merlin Metal Works and was instrumental in testing the now legendary ExtraLight.  He's considered a very top tier frame fitter.  As of recent years, Tom did the fitting, designing, and painting of Spectrum frames while his business partner Jeff Duser did the frame building and from-scratch creation of the lugs.  Tom & Jeff announced their retirement last year, and there will be no more Spectrum Cycles frames ever built.  I've only scratched the surface of Tom's bicycle resume.  If you crave even more history, here you go!

I emailed Tom Kellogg himself, and he quickly replied with these paragraphs and data points:

"Boy, Joe did a beautiful job on that frame.  No surprise there.  We sent him the decal set for it a while ago.  He really is the best.

OK, here's the deal on that bike.  First a few general things, then onto specifics.
  • We have never had "models."  All of our frames have been custom made for individuals, so there really isn't any point.

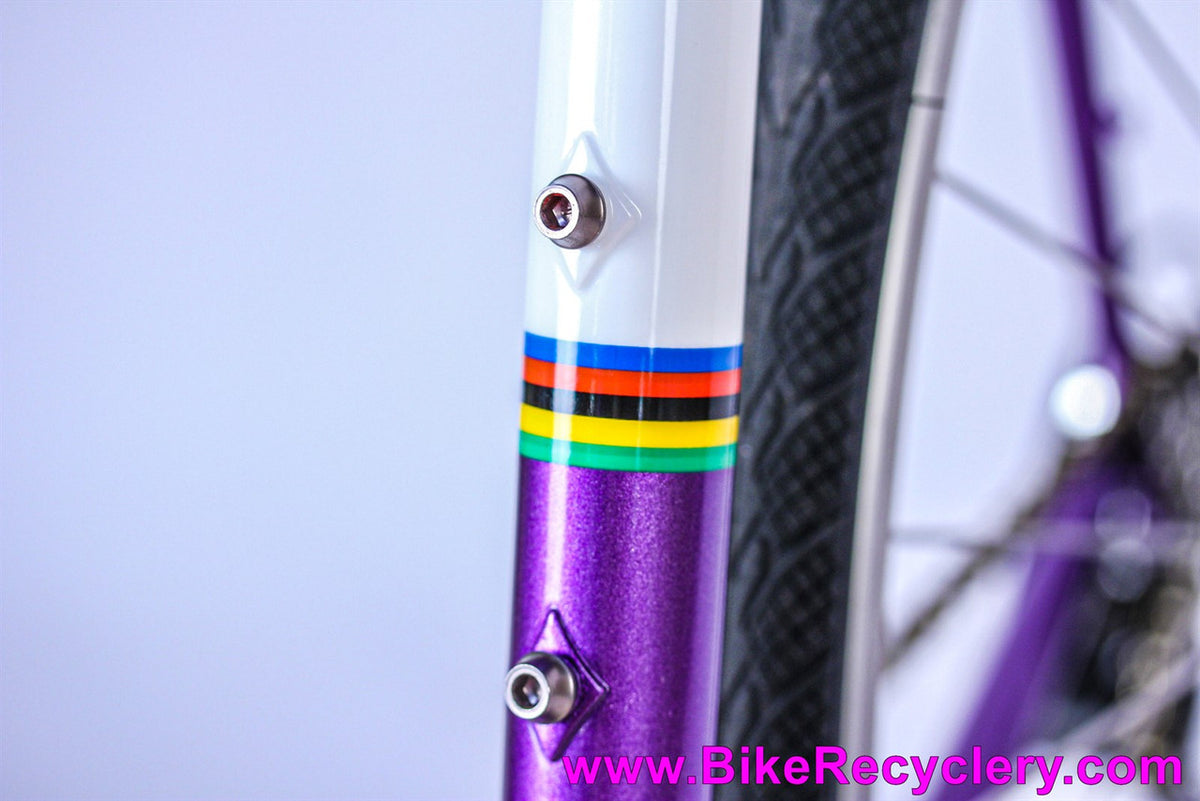

  • That fork crown is actually an investment cast crown, made by Henry James when he was still in business.  He used to call it a "Dog Bone" design.  We just used up our last one a few weeks ago.
  • The frame was originally made for a gentleman in Philadelphia ordered in May of '91 and delivered in March of '92.  The original color was what we call Porsche Red.  The original DuPont paint code is 29198.
Materials
  • Frame tubes - Ishiwata "022" except for the top tube which is "024" (022 was analogous to Columbus SL and 024 was like Columbus SP)
  • Fork blades - Columbus "SL"
  • Bottom bracket, lugs and fork crown - Henry James
  • Dropouts - Shimano "EF"
  • Dropouts and seat stay caps are bronze brazed and everything else is silver soldered (45% silver w/cad)"

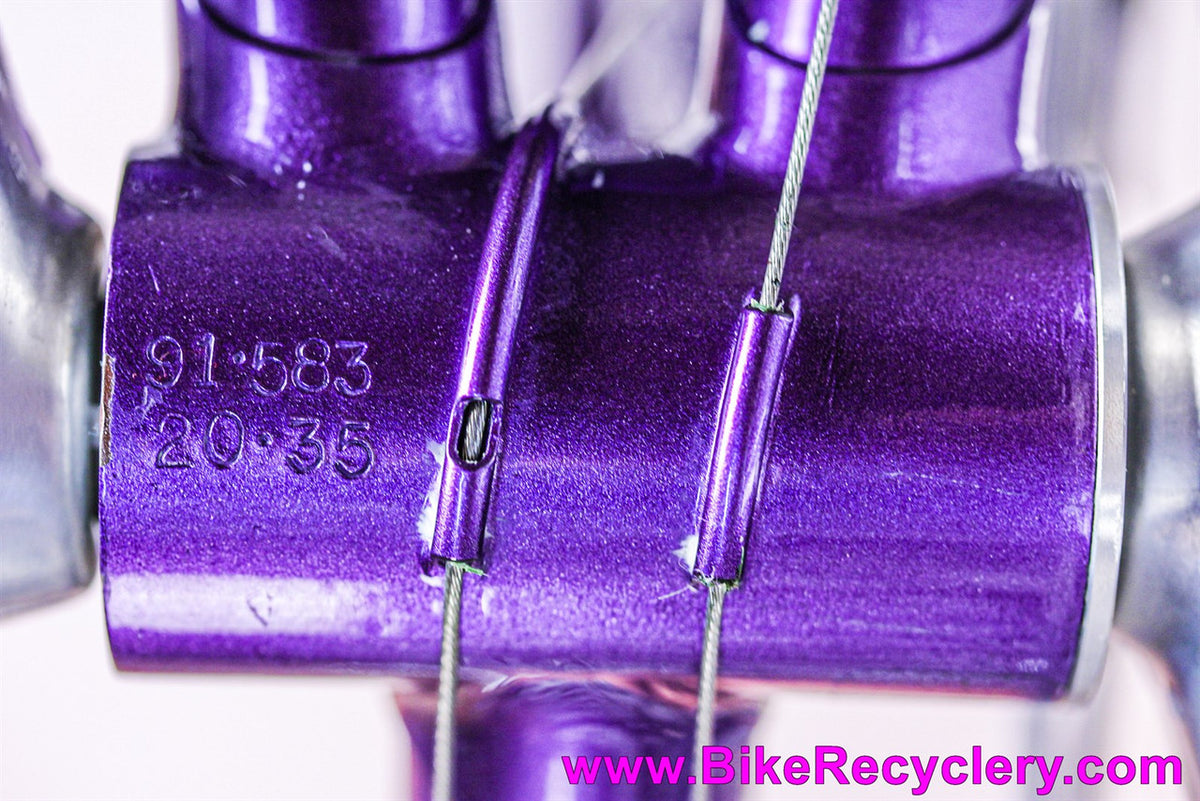

  • Frame number: 91.583 - 20.35
Geometry
  • Seat tube length (center to top of top tube) - 64.5cm
  • Top tube length (center to center) - 59cm
  • Headtube: 218mm
  • Seat angle - 72.0 degrees
  • Head angle - 73.5 degrees
  • Fork rake - 43mm
  • Chain stay length (center to dropout tip) - 410
  • Frame drop - 66.7

Condition

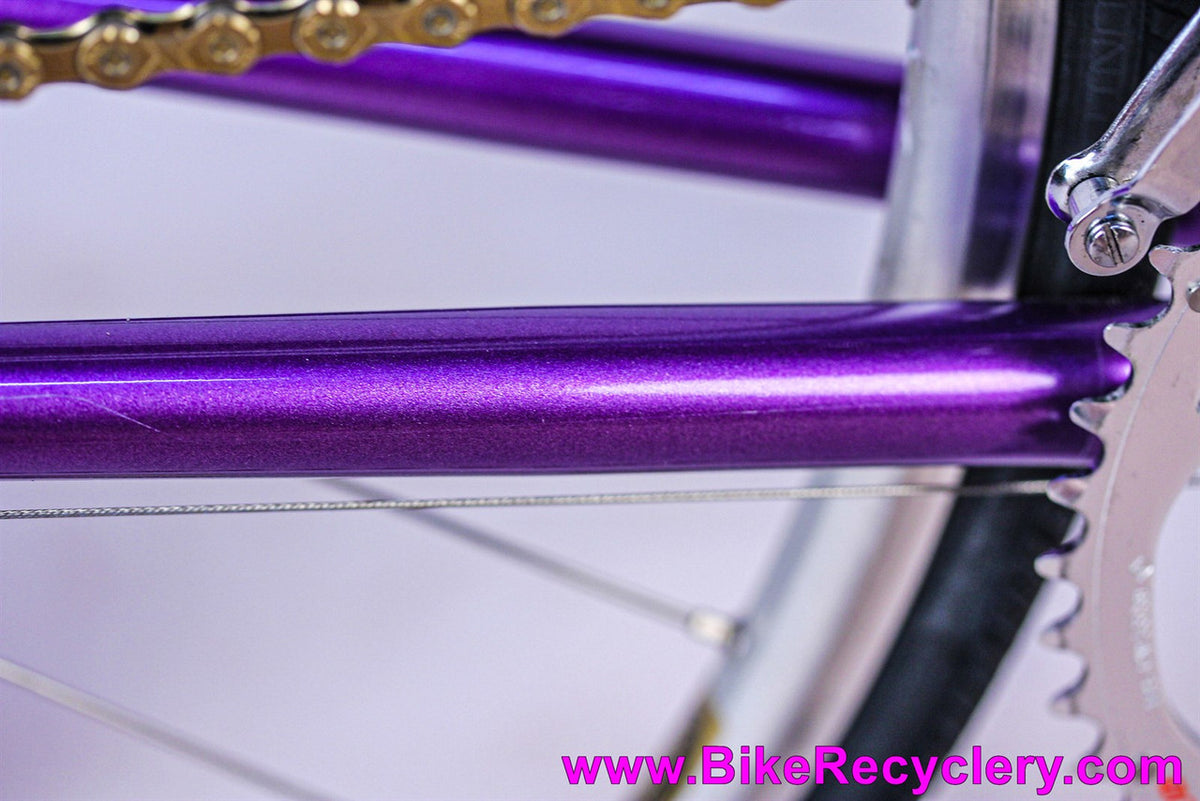

This bicycle is for all intensive purposes as brand new as you can get save a few used parts.  The frame was restored by Joe Bell in June of 2020 and built up shortly after, and has zero miles since.  Paint and frame are ABSOLUTELY pristine.  I searched it over in my photo studio lighting and found literally zero marks.  Not even a touch of cable rub, as the previous owner had a towel between the cables and the frame.  As it was restored by Joe bell, you can be assured this frame is arrow straight and dent/damage/rust/blemish free.  The vast majority of the parts used to build it are brand new with zero miles, along with a handful with under 200 miles and only one actually "used" part.

Components (see parenthesis for condition notes)

  • Campy Record HS7-RE headset, threaded 1" circa ~2000's (NOS)
  • Campagnolo Record 10 alloy crank 180mm 53/39 (probably 50 miles max)
  • Campy Chorus square taper 10s BB (NOS)
  • Campagnolo Nuovo Record Grey cables and housing (NOS)
  • Campy Super Record brake levers: circa 1978, they have kind of an amber sheen to the clear anodizing which looks cool. The hoods are darkened but still supple and no tears (appear almost NOS, one tiny scratch only)
  • Campagnolo Super Record 3-hole front derailleur circa 1980's (NOS)
  • Dura Ace 9-speed barcons set for friction mated to 10s cassette (NOS)
  • KMC Gold chain, 10s (NEW)
  • Silca color matched pump (paint by Joe Bell) with a Campy head (new production, unused)
  • Cinelli 120mm 1A stem: modern w/ laser etched logo (NEW)
  • American Classic seatpost (NOS)
  • Fizi-K tacki bar tape (NEW)
  • Ultegra cs-6700 10-speed cassette 12/30t (20 miles)
  • Wheels Dura Ace 7700 32 hole hubs, Mavic Open Pro SUP rims built by Wheelsmith (maybe 200 miles, near mint except QR end scrape and decals peeling)
  • Vittoria Zaffiro tires 700 x 25 (20 miles, still have nibs)
  • Cinelli 66-44 bars non-groove (very lightly used, only a few light scratches visible)
  • Dura Ace 7800 brakes (maybe 200 miles, almost mint)
  • Dura Ace 7900 rear derailleur (maybe 200 miles, almost mint with just a few pinpoint ano marks)
  • Sella Itallia Turbo Bernard Hinault saddle (lightly used, excellent+ shape)
